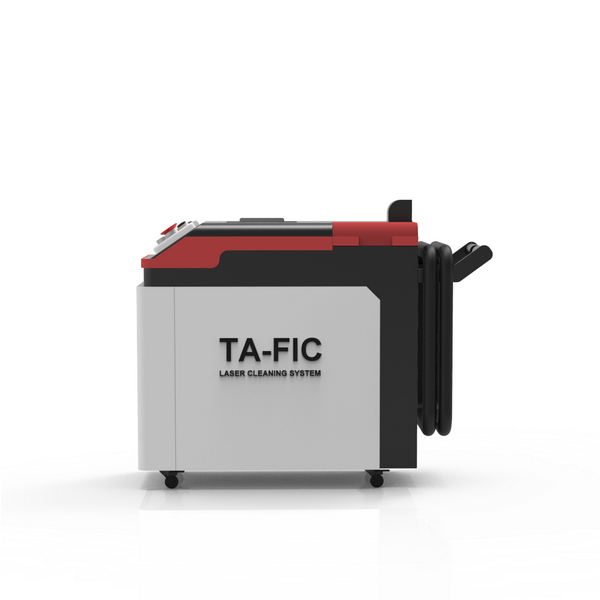

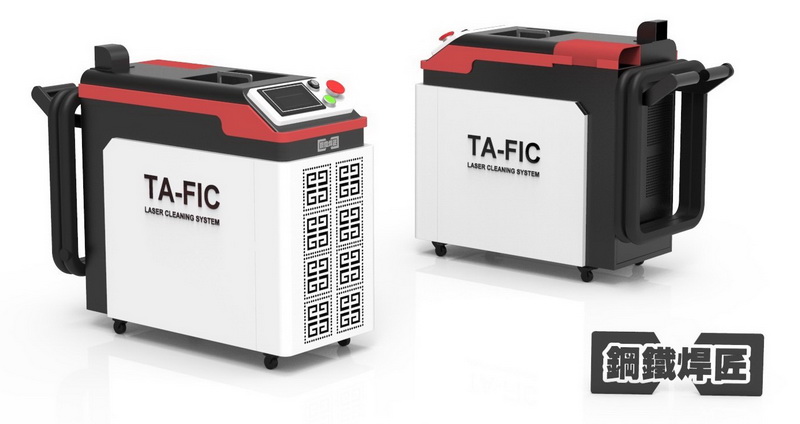

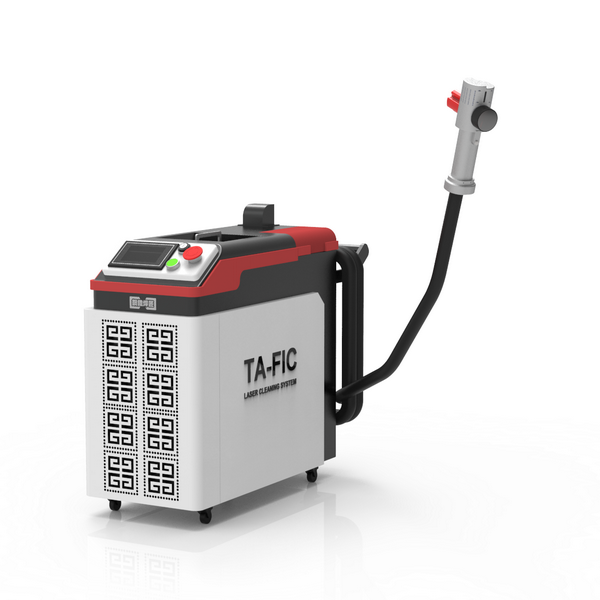

TA-FIC-100W Handheld Laser Derusting Machine
Smaller size, suitable for outdoor construction operations
Lighter laser gun body, suitable for long-term construction |
Air-cooled design, no bulky water tank. Significantly reduce the size and weight of equipment |
Specifications
| M² | <2 |
| Output armored cable length | 8m |
| Average output power | >100W |
| Maximum pulse energy | 1.5mJ |
| Frequency adjustable range | 1-4000kHz |
| Pulse width | 2-500ns |
| Output power instability | <5% |
| Cooling method | Air cooling |
| Supply voltage | 48V |
| Maximum power consumption | <400W |
| Ambient supply current | >8A |
| Center wavelength | 1064nm |
| Spectral width@3dB | <15nm |
| Polarization direction | Arbitrary |
| Is it anti-high reflection | Yes |
| Beam diameter | 4.0±0.5mm 7.5±0.5mm（can be customized)） |
| Power adjustment range | 0～100% |
| Working temperature range | 0～40℃ |
| Storage temperature range | -10～60℃ |
| Dimensions | 350*280*112mm |
| Weight | 50Kg |
*Specifications are subject to change without prior notice, please refer to the specifications on the latest quotation.
Application range
Paint removal, rust removal, oil stain removal, screw / hardware cleaning, mold cleaning, etc.
Introduction of actual machine operation
 |
 |
 |
 |
 |
Others
 |
 |
 |
| TAXZ series high power handheld laser derusting machine (CW continuous type) | TA-FIC-P100W Handheld Laser Derusting Machine | Optical fiber laser derusting machine [100W&200W] |
