Full cover design – Safer to use
Support laser wattage 1500W – 30000W
Infinity 3015 EC: Laser wattage supports 1500W / 2000W / 3000W / 4000W / 6000W
Size (Optional)：3000*1500mm / 4000*2000mm / 6000*2000mm / 6000*2500mm
15 seconds to change the platform
Exchange high and low platform – Saves time – Improves processing efficiency
 |
Laser Wattage Supported 1500W / 2000W / 3000W / 4000W / 6000W 12000W / 15000W / 20000W / 30000W The wattage range of compatible lasers will vary depending on the model |
|
Humanized operation interface Improved graphics and text interface control handle, more intuitive to use |
 |
 |

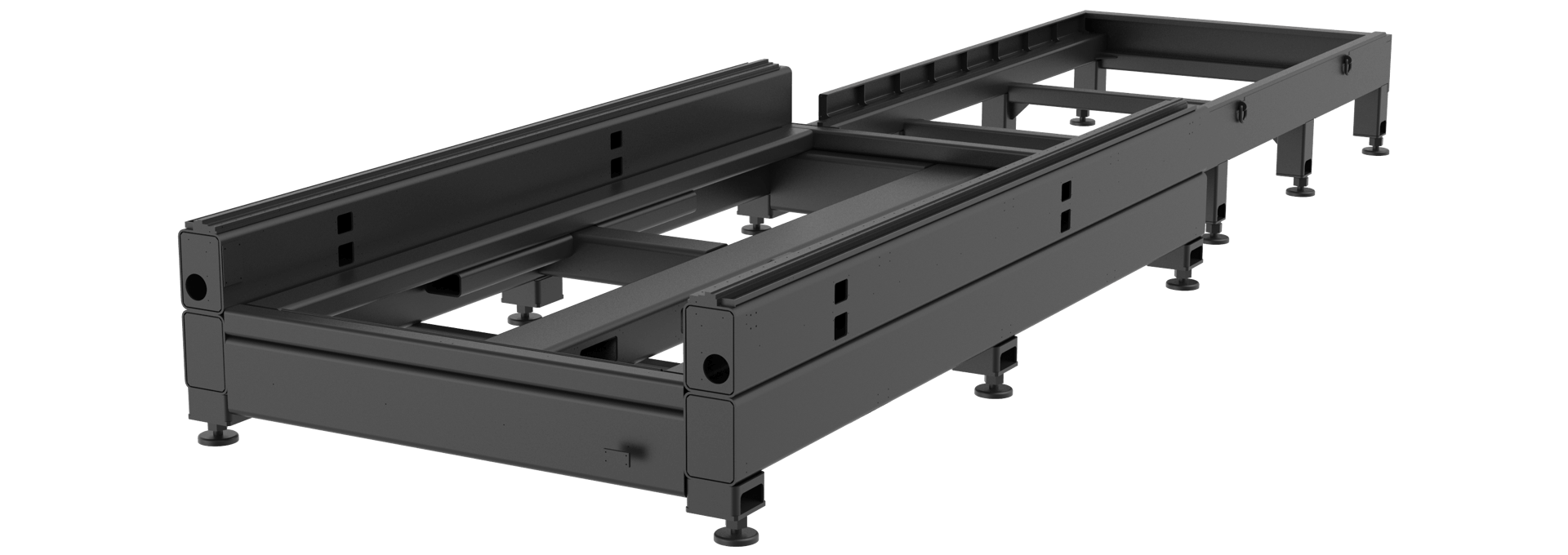

Anti-burning steel plate carbon plastic steel welding plate Not easily deformed by external force, good stability, more durable |
Specifications
【Specifications of Infinity 3015 EC】
| Processing range (length * width) | 3000*1500mm |
| Laser wattage (optional) | 1500W / 2000W / 3000W |
| X / Y axis positioning accuracy | ±0.05mm/m |
| X / Y axis repeat positioning accuracy | ±0.03mm |
| Maximum empty speed | 120m/min |
| Maximum acceleration | 1.0G |
| Support file format | AI / DXF |
| Maximum load of working | 700kg |
| Weight | 5600Kg |
| Size (length * width * height) | 8224*2862*2245mm |
| Voltage | Three-phase 220V / 60Hz |
【Specifications of Infinity 4020 EC】
| Processing range (length * width) | 4000*2000mm / 6000*2000mm / 6000*2500mm |
| Laser wattage (optional) | 【4020EC】1500W – 12000W
【6020EC】3000W – 20000W 【6025EC】3000W – 30000W |
| X / Y axis positioning accuracy | ±0.05mm/m |
| X / Y axis repeat positioning accuracy | ±0.03mm |
| Maximum empty speed | 120m/min |
| Maximum acceleration | 1.2G |
| Support file format | AI / DXF |
| Maximum load of working | 4020EC：3000kg
6020EC：3300kg |
| Weight | 5600Kg (Depends on optional size) |
| Size (length * width * height) | 4020EC：10725*3680*1970 mm 6020EC：149443*3700*2236mm 6025EC：149443*4090*2236mm |
| Voltage | Three-phase 220V / 60Hz |
※The specification of equipment is updated irregularly. The above specifications are subject to change without prior notice. Please refer to the specifications on the latest quotation.
※The actual cutting thickness will vary according to the wattage (it is recommended to refer to the actual proofing).
※Part of the functions are optional.
